Product Description
Are you having problems with damp walls?
Will water leak from your walls when it rains?
Is your floor/wall paint peeling off due to moisture?
Do you have to paint your house from time to time because of moisture?
The solution is here.
Thanks to 16mm thick insulation panels, damp walls are a thing of the past.
product advantages
Facing panels for external walls with a thickness of 16 mm have the following advantages:
1. A panel is a decorative material that can decorate your space.
2. The panel is waterproof, so you don't have to worry about mold on the wall.
3. The panel is attached with screws, not glue, so it can stay on the wall for as long as necessary.
4. The panel is odorless and does not pollute the environment. Ideal for moving decoration.
5. The panels can be moved and reused several times in different places. Even broken panels can be sold as aluminum panels.
6. The panel is fire-resistant.
7. The panel prevents noise of 29 dB. It has the same sound insulation effect as a solid wall.
8. The panel is 10 degrees warmer than a house finished with paint, and 7 degrees warmer than a house finished with other siding panels.
9. When ceilings, walls, balconies and villas are paneled, there is no need to worry about sunlight.
10. This panel is widely used in commercial and home decoration.
11. The panel is resistant to acids and alkalis and is easy to clean.
12. The panel can be attached directly to the wall using screws.
13. The panel is lightweight, easy to install, transport and disassemble.
14.Panels are available in different styles and colors. This panel will satisfy everyone's needs.
15. The panel is a perfect combination of aluminum plate and rigid polyurethane foam, which makes the panel resistant to pressure.
Product parameters
|
size |
3800/5800*383*16mm/20mm (length can be customized) |
|
Surface texture and appearance |
Rough brick texture; Wide or narrow brick texture; Standard brick texture; Standard brick texture; Bark texture; Stone texture; Simple texture |
|
Material |
polyurethane |
|
thickness |
0,27 mm-0,3 mm |
|
unit |
3.5kg~3.7kg/cubic meter |
|
Waterproof tariff |
415% |
|
Wind resistance |
8,0 kPa |
|
Thermal conductivity |
0,025 W/m K |
|
Thermal resistance |
2.09㎡k/w |
|
Density of polyurethane |
40 kg/cubic meter |
|
Compressive strength |
52.7 kPa |
|
peculiarity |
Good thermal insulation and heat insulation properties. |
|
Excellent fire protection |
Tested by the National Center for Quality Control of Fire-Resistant Building Materials. |
|
technical support |
All indicators reach level B1 |
|
used |
According to your request (B1/B2) |
|
Install |
Comes with engineering drawings |
|
application |
Various roofs and walls are related to large factories, warehouses, exhibition halls, sports halls, freezers, etc. |
Product style

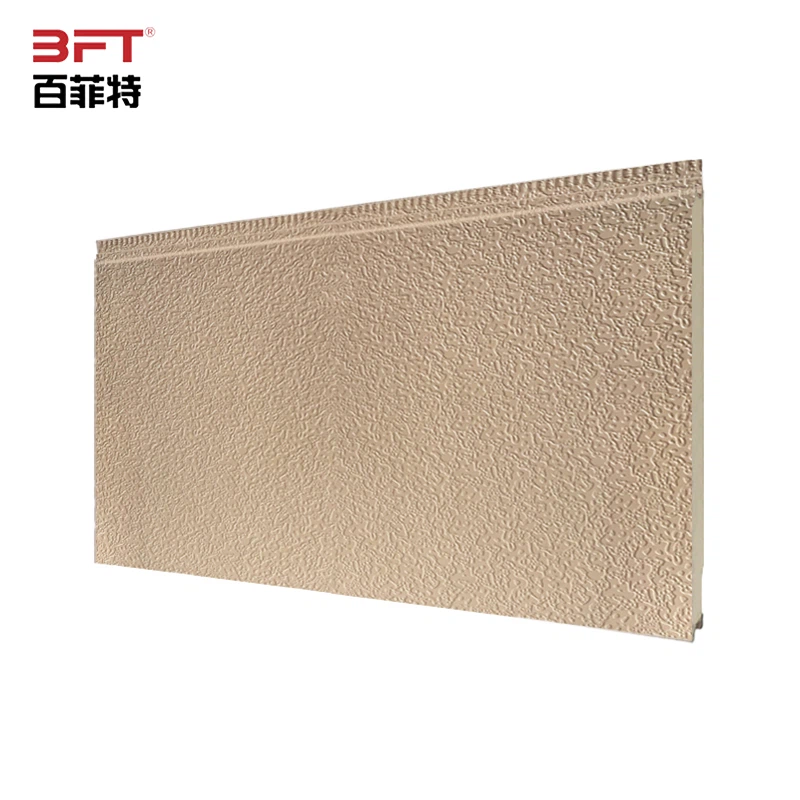

product structure
· 3 floors
·Surface: 0.3mm thick steel plate with aluminum-zinc alloy coating (Al 55%, Zn 43%).
· Medium: 16mm/20mm thick polyurethane foam.
· Back: Aluminum foil
· Size: Length (3000-6000 mm)
Width: 380 mm
Thickness: 16mm/20mm
· Weight: 3.5 kg/m2
Product information
1>Top coat
Isolate external contaminants and protect paint.
2>Surface material
It has better flexibility and plasticity, longer service life and 3D design.
3>Main material
It has excellent waterproofing, fire resistance and sound insulation properties.
4>Bottom material
Reduces heat and can conduct heat, and is also waterproof, fireproof and moisture resistant.
Install
Tools/materials: electric drill, dowels, self-tapping screws, 16 mm insulation board.
1. Firstly, place the 16mm thick external wall cladding board on the wall, turn on the hand-held electric drill, and then use the electric drill to drill holes on the wall at the connection point of the insulation board.
2. Then install dowels into the holes and secure them with screws.
3. Finally, place another board on top of the 16mm thick external wall cladding board and insert the groove of the other board into the groove of the fixed insulation board. Then repeat the above operation.
4. After installation, the outer wall will be beautifully decorated, insulated, fireproof, waterproof and soundproof.
Precautionary measures:
Before installation, level the wall.
Also pay attention to the level when installing the cladding panels of the external walls.
application
16mm thickness external wall cladding panels are widely used for external wall cladding and internal wall insulation in PEB residential buildings, villas, steel structure buildings, hospitals, old building renovation, schools, libraries, supermarkets, factories, stations, residential buildings and otherareas!
